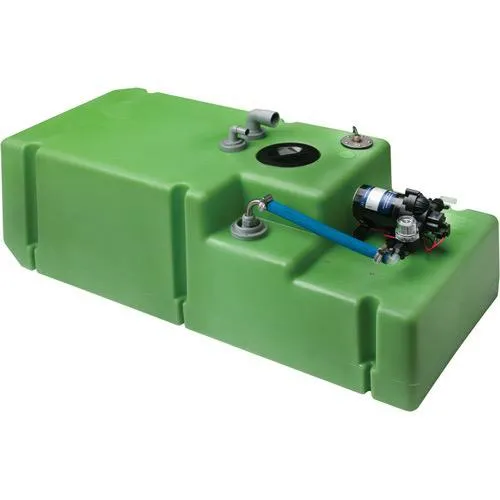

This high grade synthetic tank for drinking water is supplied with an electric pump which automatically switches on when the pressure in the system drops (for example when a tap is opened).

Specifications

• Tank capacity of 42, 61, 88 and 120 litres
• Pump motor is available for 12 or 24 Volt
• Output 13,2 ltr/min at zero head
• Connections for filling line Ø38 mm, outlet line Ø13 mm and ventilation line Ø16 mm
• Also supplied with inspection cover, float sensor, connectors and filter in suction line

  Other Details:

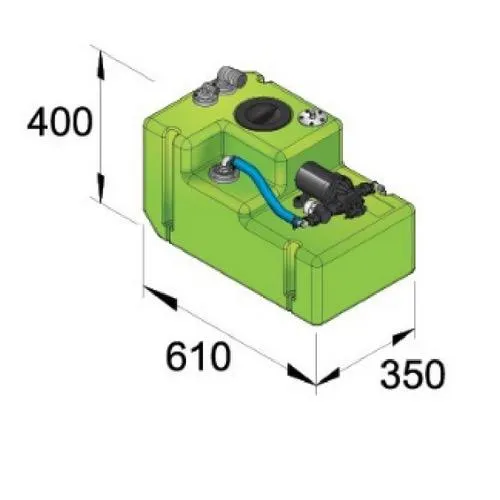

  Type	Tank Capacity	Voltage	Dimensions (Length x Width x Height) (mm)	Pump capacity (l/min)	Pump pressure (Bar)
  DWSC04212	42	12	610 x 350 x 400	13,2	3,1
  DWSC04224	42	24	610 x 350 x 400	13,2	3,1
  DWSC06112	61	12	780 x 350 x 400	13,2	3,1
  DWSC06124	61	24	780 x 350 x 400	13,2	3,1
  DWSC08812	88	12	930 x 400 x 400	13,2	3,1
  DWSC08824	88	24	930 x 400 x 400	13,2	3,1
  DWSC12012	120	12	1050 x 450 x 400	13,2	3,1
  DWSC12024	120	24	1050 x450 x 400	13,2	3,1
